PDF vs CAD Explained
We offer house plans in two formats: PDF (easiest and fastest—email delivery, easy printing and viewing) or CAD (DWG files for extensive modifications, requires CAD software). Both formats include a Copyright Release allowing you to modify the plans and make copies to build one house. Building the same plan more than once requires a separate re-use license—contact us for details.
House Plan Specifications:
- Total Living: 3291 sq. ft.
- Bedrooms: 4
- Full Baths: 4
- Half Baths: 1
- Exterior Wall: 2x6
- Foundation: Crawl Space
- Stories: 2
- Width: 46' 0"
- Depth: 34' 10"
- Garage Bays: 0
- Roof Pitch: 12:12
House Plan Features:
- Fireplace
- Flex Room
- Foyer
- Great Room
- Kitchen Island
- Laundry First Floor
- Loft
- Master Suite First Floor
- Open Floor Plan
- Walk-in Closet
- Walk-in Pantry
- Patio/Sitting Area
- Rear Porch
- Vaulted/Volume Ceilings

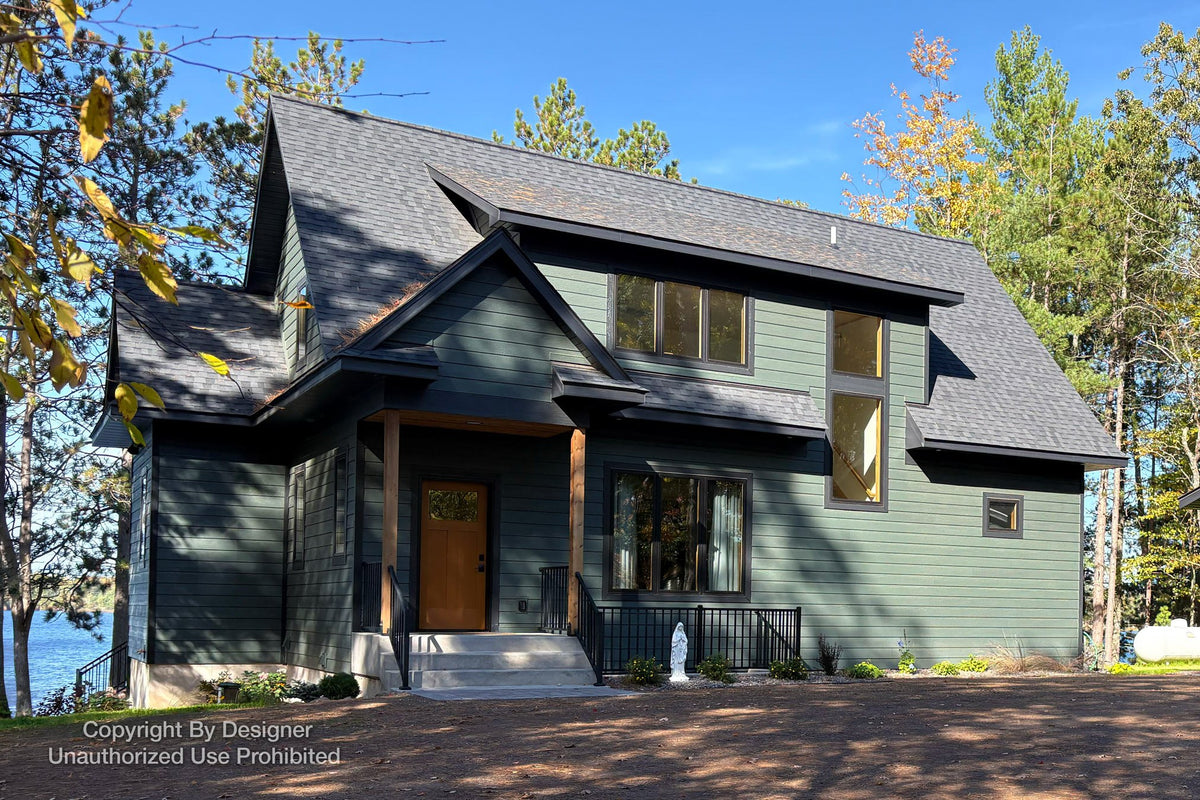

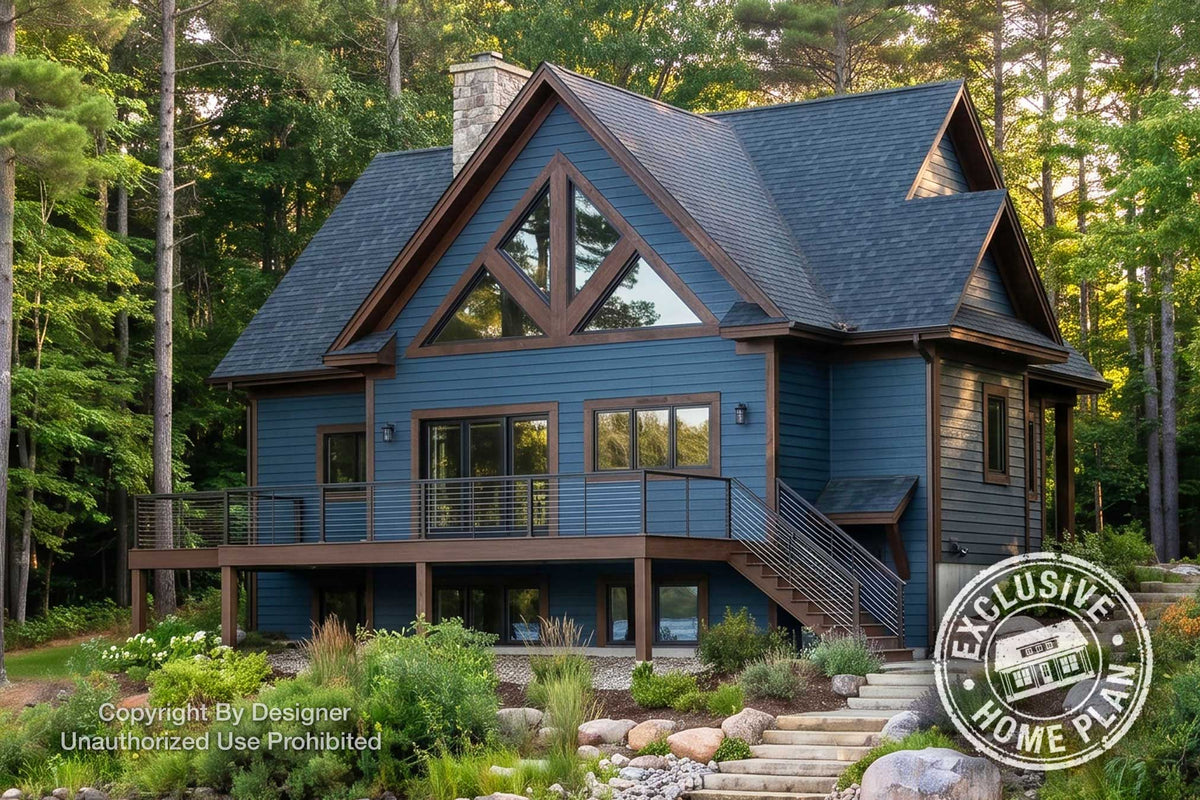

North Haven House Plan: A Cottage Retreat with a Loft

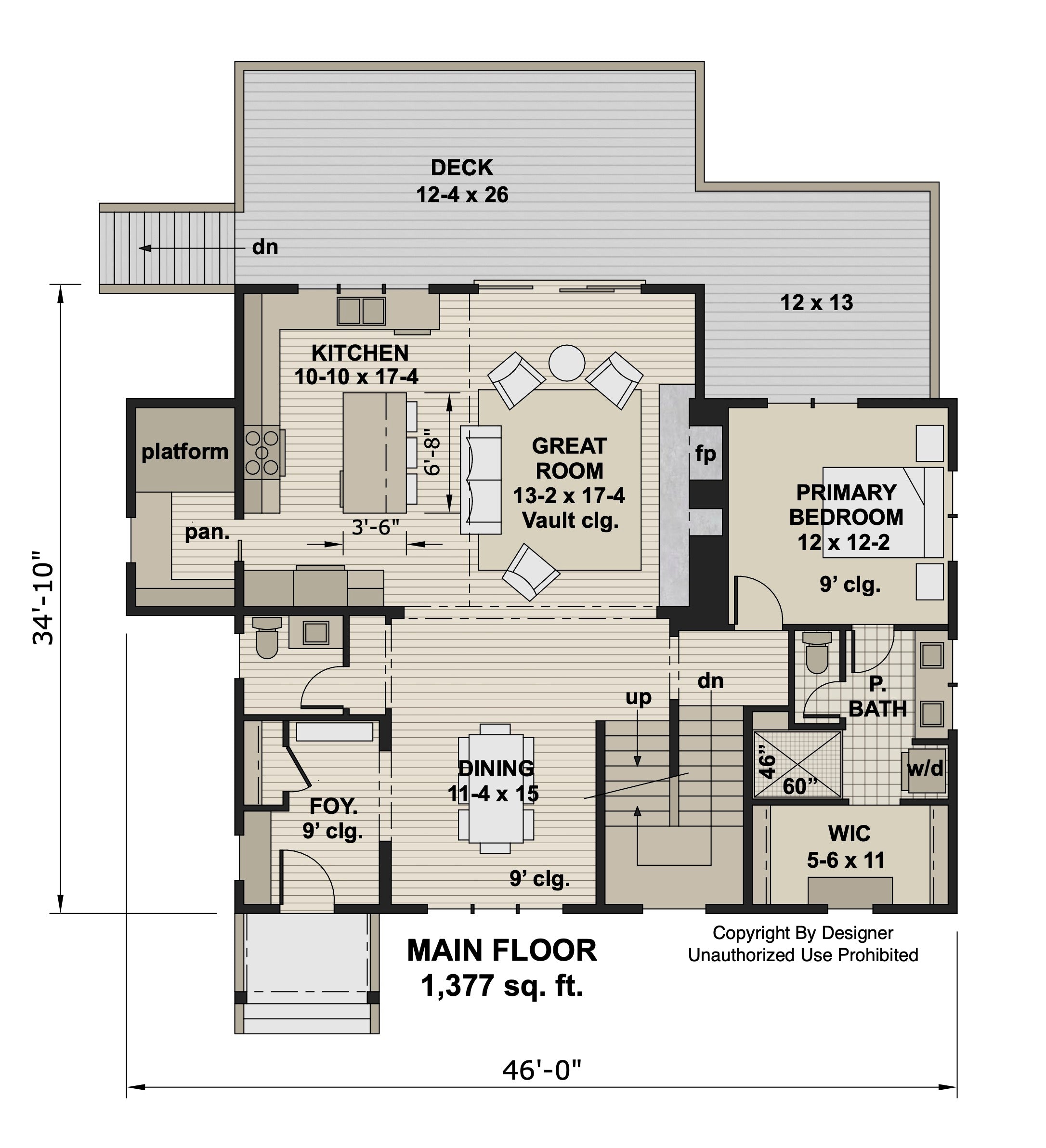

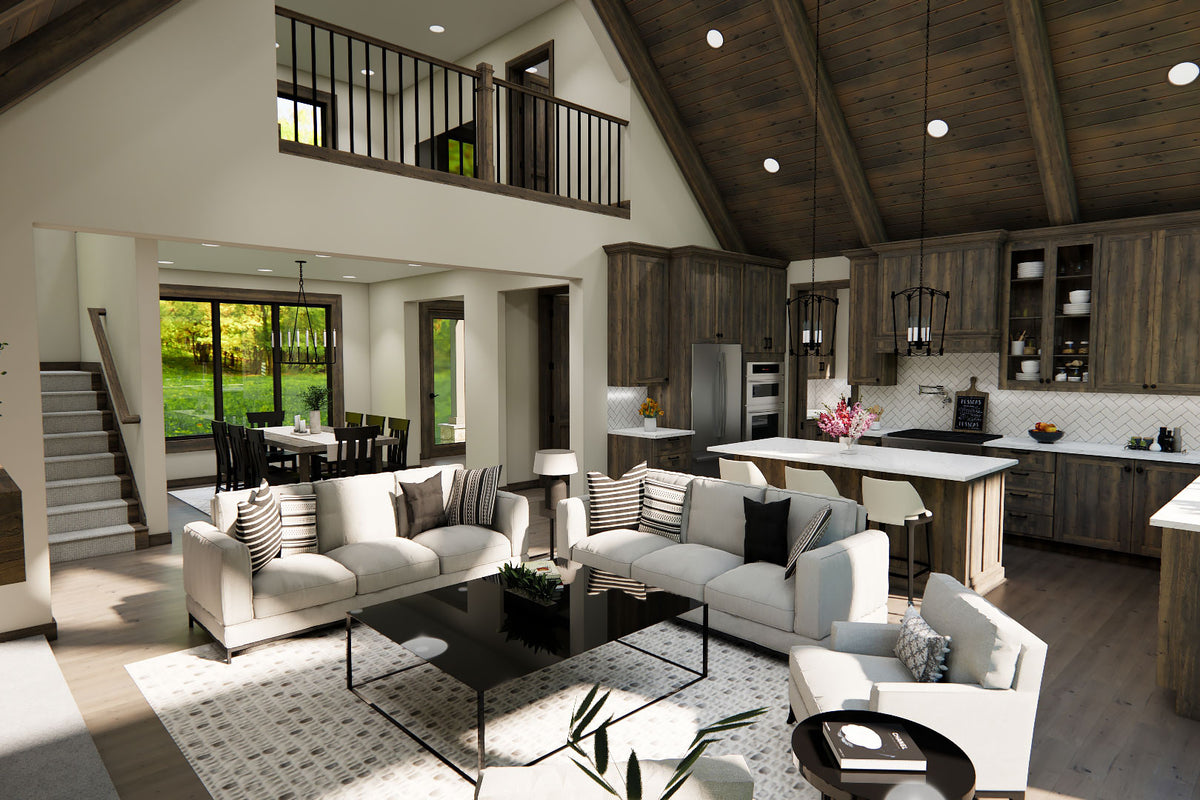

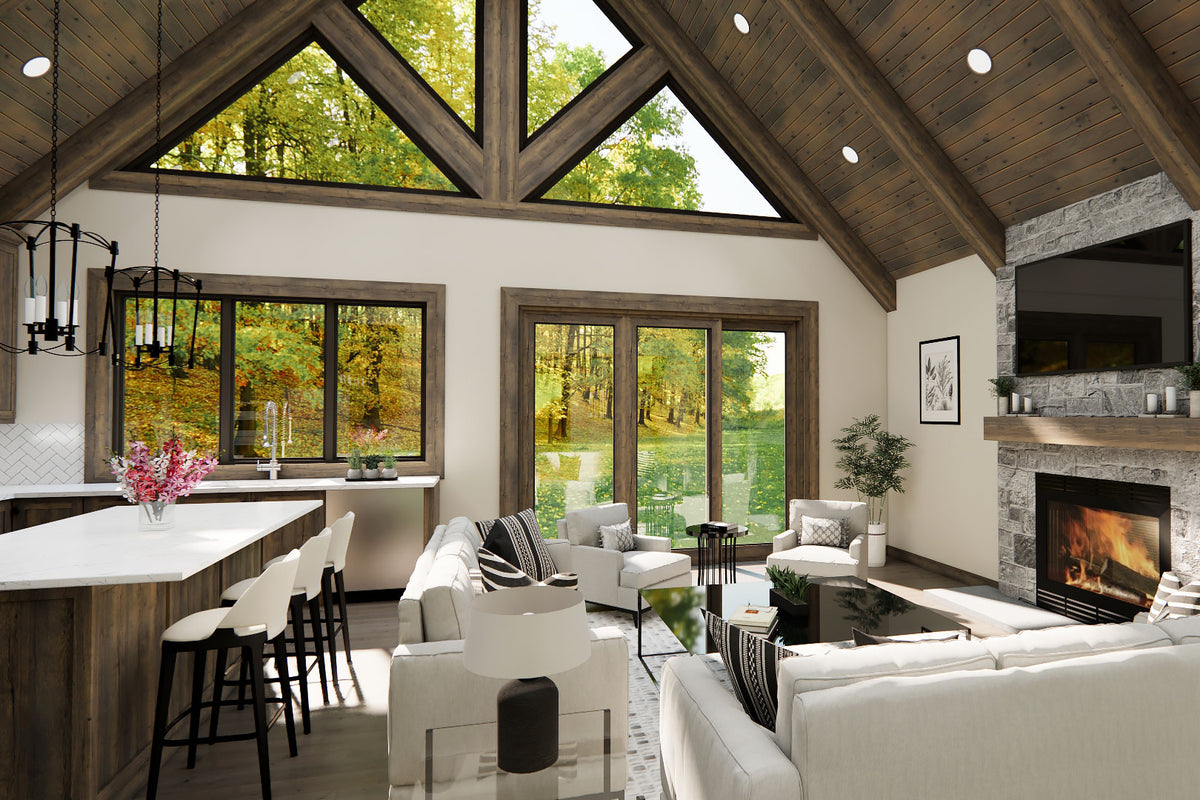

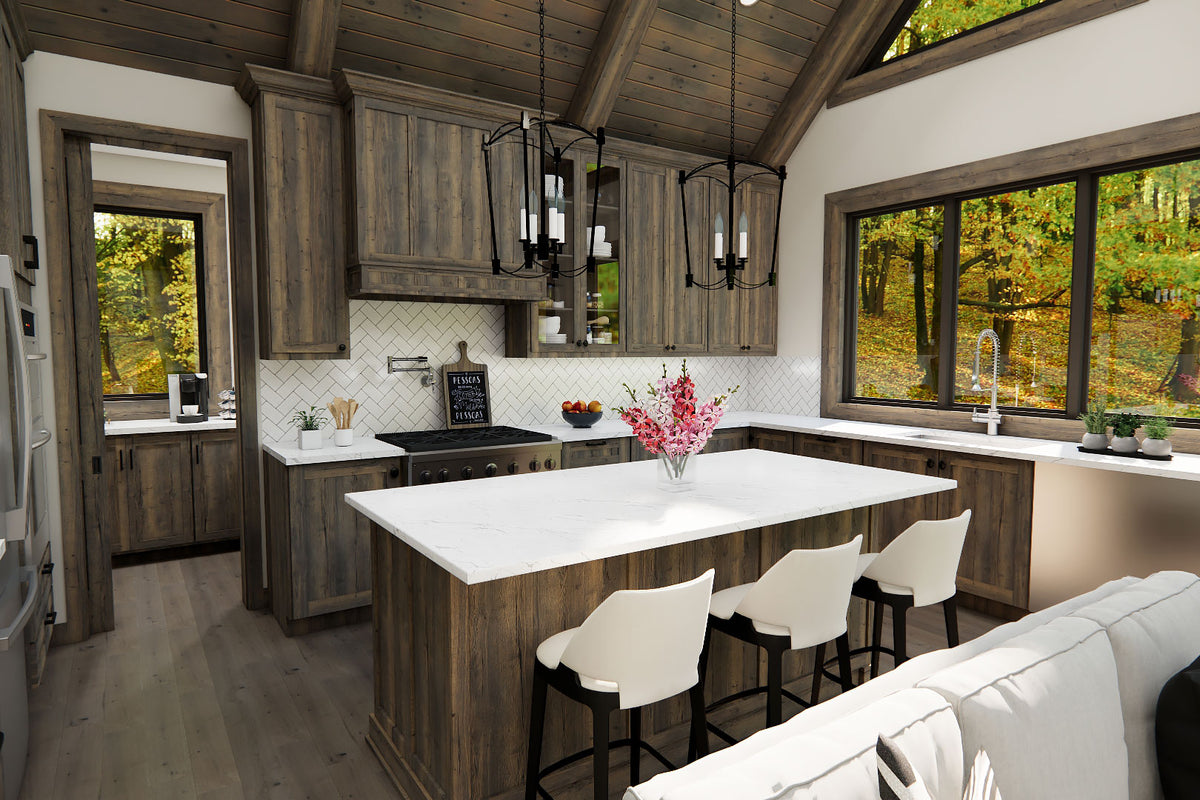

North Haven brings gathering spaces and quiet retreats together in a cottage plan with a vaulted great room. Tall windows draw light into the living area, while the fireplace creates a place to settle in at the end of the day. The open kitchen and its island keep cooking, conversation and everyday meals connected.

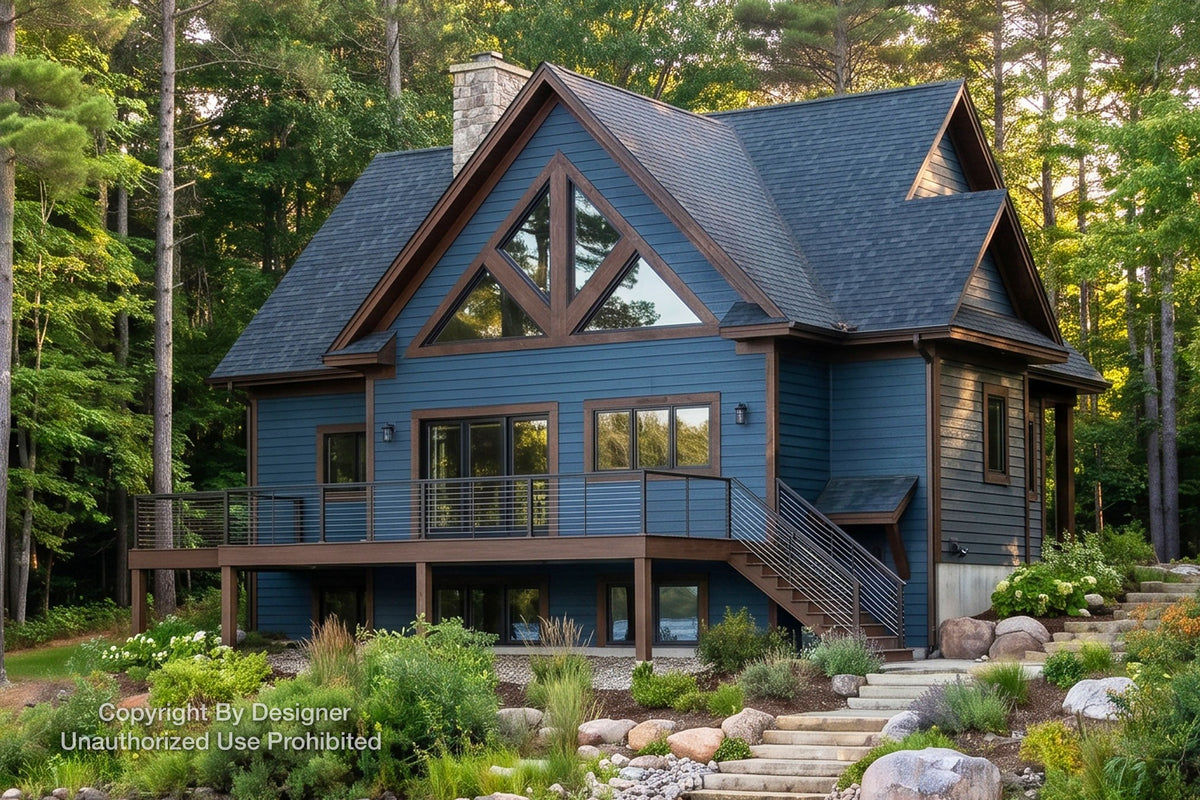

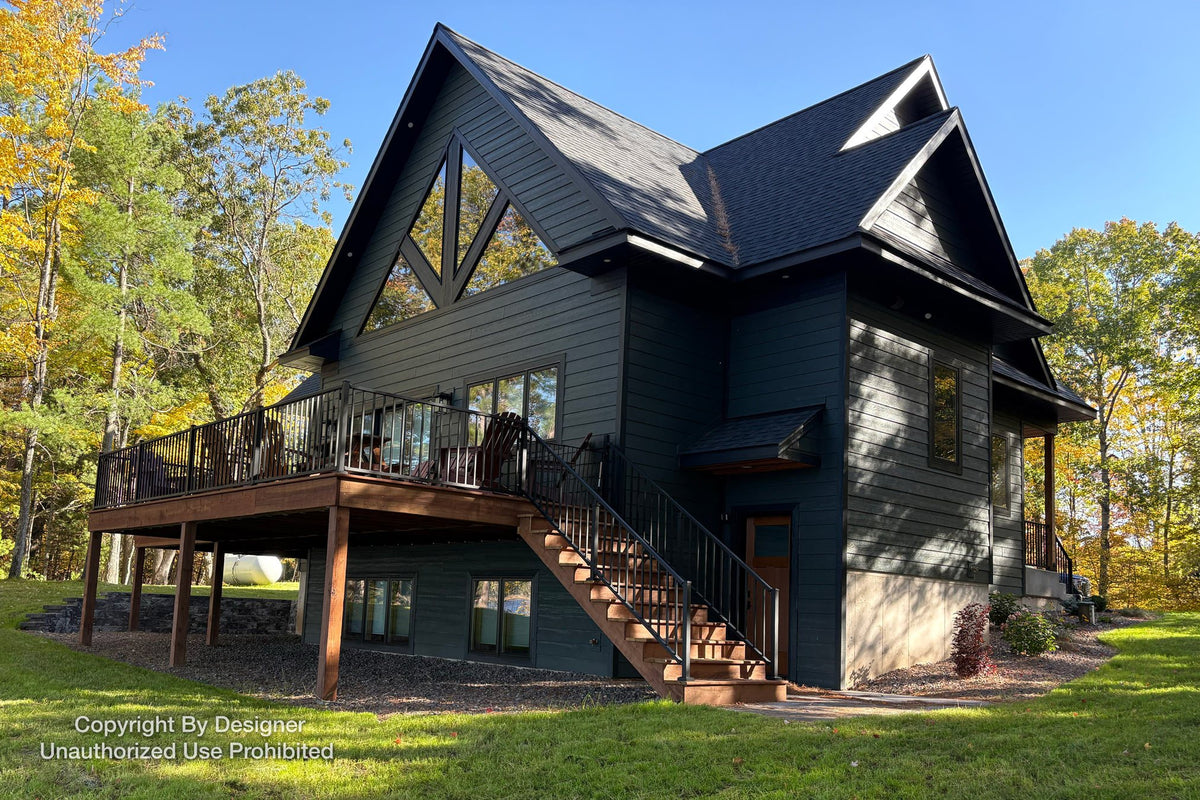

The rear deck extends the living space outdoors for morning coffee or dinner with friends. A main-level primary suite gives you a private place to unwind, close to the home's daily gathering spaces.

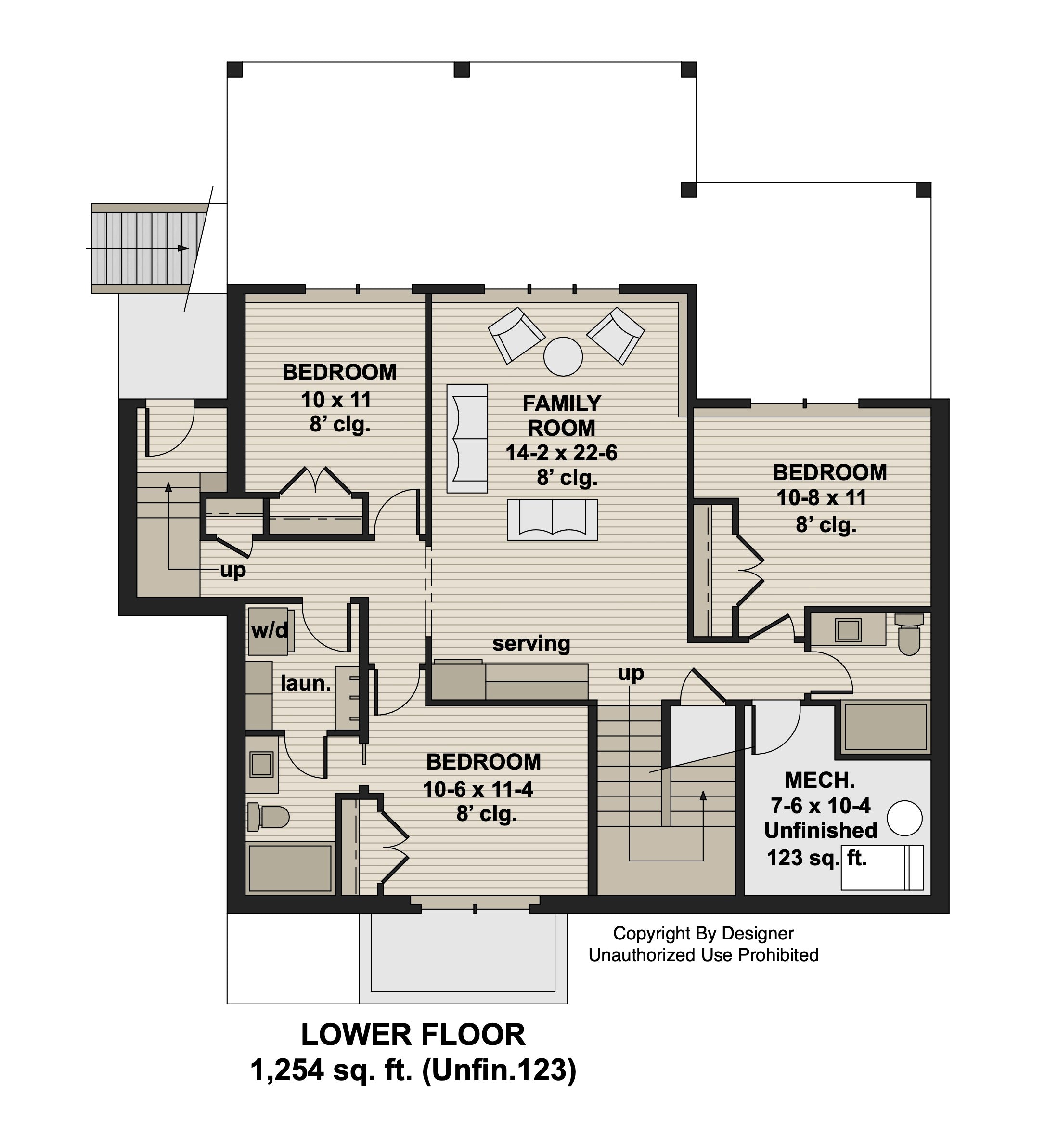

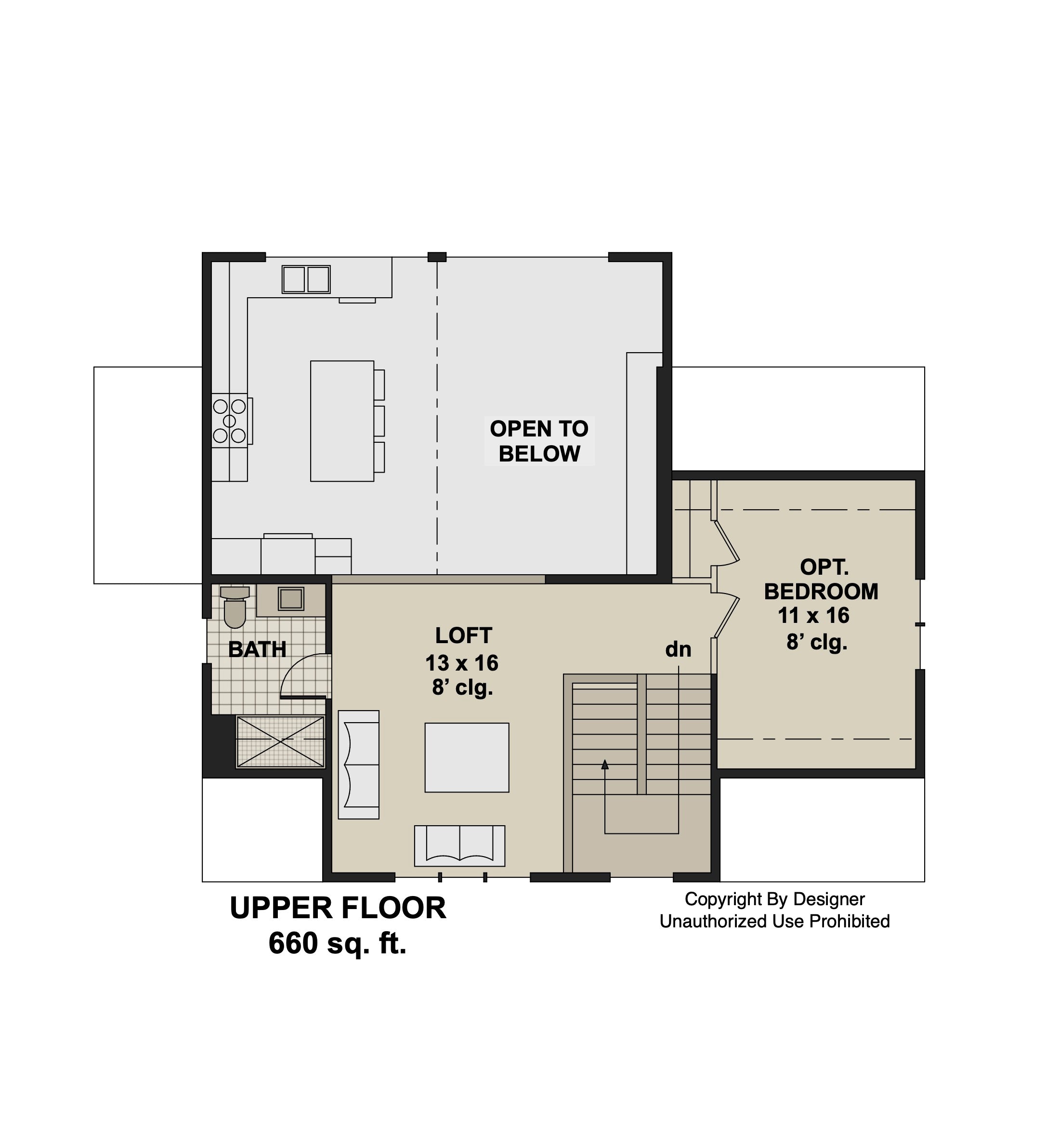

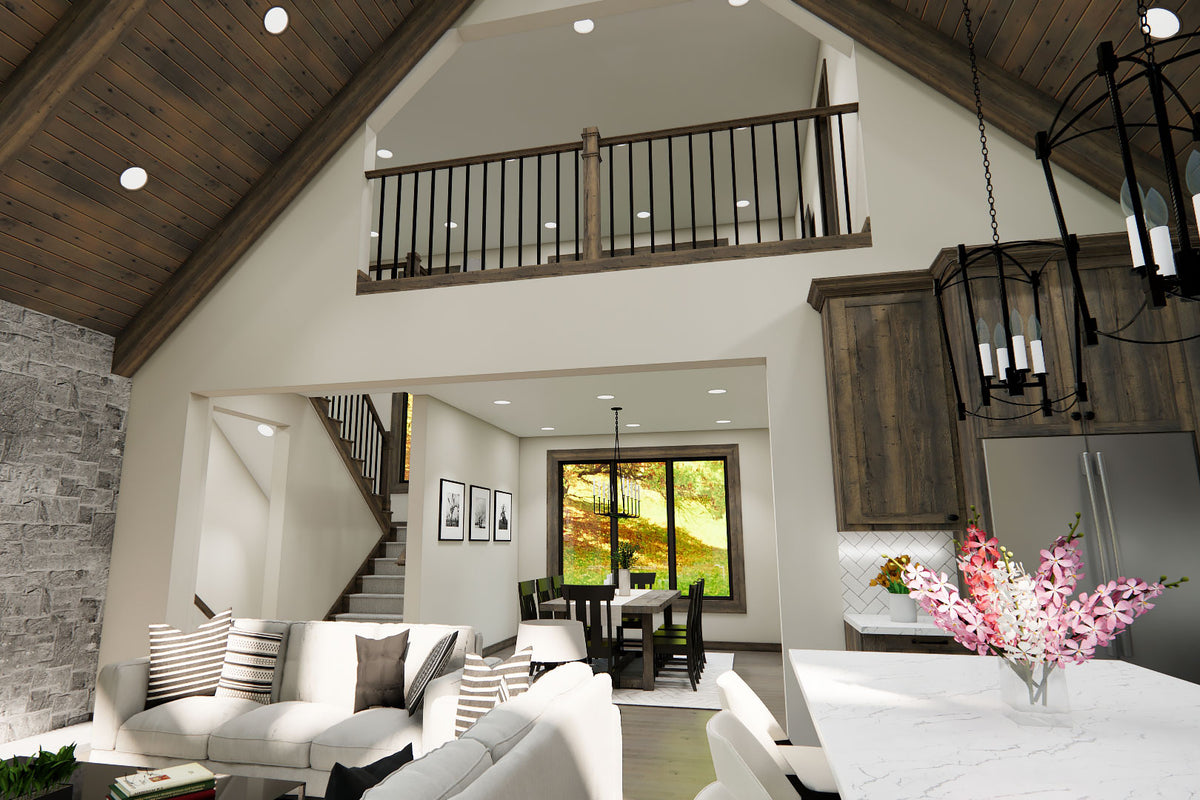

Downstairs, a family room and wet bar provide another setting for games, visits and relaxed evenings. Above the great room, an open loft offers a quieter place to read or spend time together, with views into the living space below. North Haven balances shared spaces with places to enjoy a little time apart.
Whats in a Set of Plans?
Our plans include everything you need to build your dream home. Depending on your location, you may need additional items like structural engineering reviews or energy calculations—your builder can advise on local requirements. Most plans are ready for immediate delivery (within 1 business day), though plans with options like foundation options or material lists may take 10-14 business days. See full details about what's included.
